Maintain Peak Motor Performance with a Professional Winding Resistance Test

At Asset Condition Monitoring, we specialize in precision testing to keep your motors reliable, efficient, and safe. Our Motor Winding Resistance Test identifies hidden faults such as shorted turns, open circuits, or poor connections before they lead to costly breakdowns.

What is Motor Winding Resistance?

Motor winding resistance is the direct current (DC) resistance of the copper or aluminum wire inside a motor's coils. It is a fundamental parameter that directly impacts efficiency, performance, and lifespan. Measuring winding resistance ensures that your motor operates within safe limits and that its windings remain balanced.

Why is Winding Resistance Testing Crucial?

Winding resistance testing helps identify:

  • Shorted or open turns in coils

  • Loose or corroded connections

  • Phase imbalances in 3-phase motors

  • Incorrect winding or poor workmanship

  • Insulation deterioration (when combined with other tests)

By detecting these issues early, you can prevent unplanned downtime, avoid costly repairs, and extend motor service life.

When Does Your Motor Need Winding Resistance Testing?

Motor winding resistance testing is crucial for maintaining optimal machine performance. In addition to regular inspections, consider booking a test if you notice any of the following:

Overheating or burning smells

Tripping of circuit breakers or fuses

Excessive noise, humming, or vibration

Reduced torque or efficiency

Frequent motor failures or downtime

Steps of a Motor Winding Resistance Test

At assetconditionmonitoring.com, we help industries protect their investments with accurate and professional motor testing services.

01

Visual Inspection

Check for visible damage, overheating, or corrosion.

02

Continuity Check

Ensure each winding is electrically continuous.

03

Insulation Resistance Test

Assess insulation condition between windings and ground.

04

Resistance Measurement

Measure winding resistance phase-to-phase (U-V, V-W, W-U) using precision low-ohm meters.

05

Temperature Correction

Adjust readings to reference temperature (20 °C or 75 °C).

06

Analysis & Reporting

Compare resistance across phases (imbalances > 2–3% may indicate faults) and deliver a full diagnostic report.

Maintaining Motor Windings

To maximize motor performance:

  • Keep motors clean, dry, and well-ventilated
  • Avoid overloads and voltage imbalances
  • Perform scheduled resistance checks
  • Maintain proper lubrication and alignment
  • Record and track test results over time

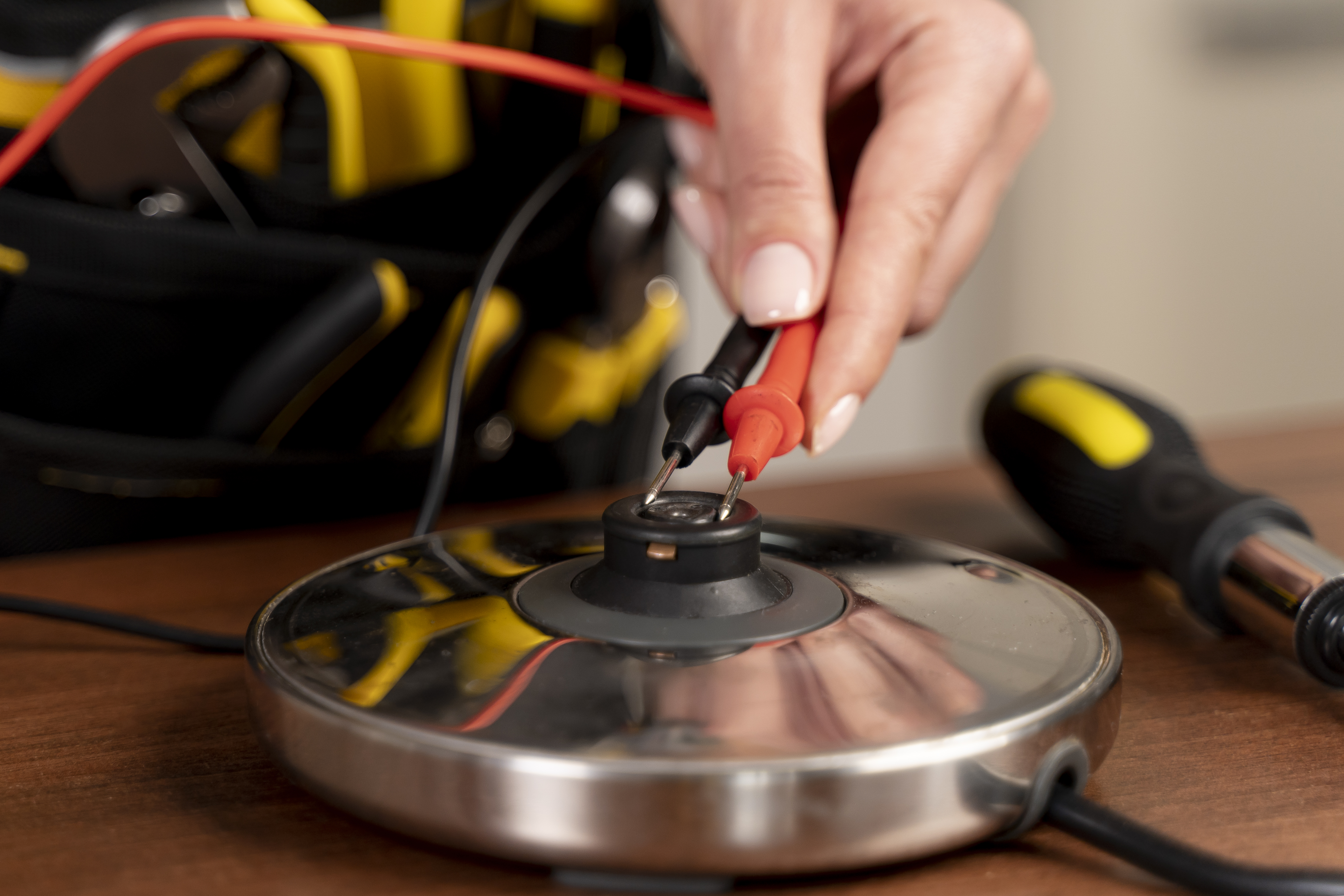

Motor winding maintenance

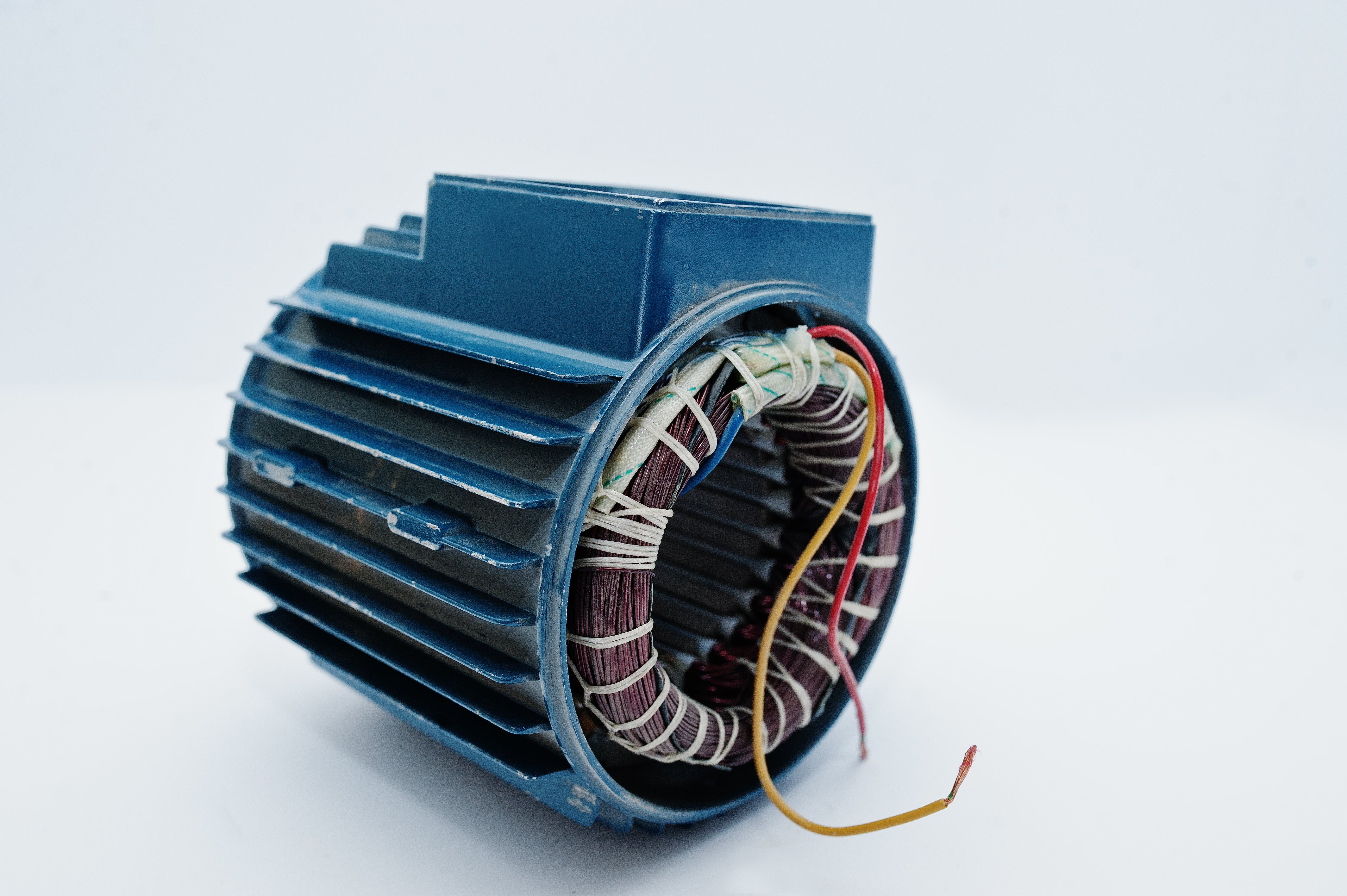

3-phase induction motor

3-Phase Induction Motor Winding Resistance

In 3-phase motors, resistance must be:

  • Balanced across all three phases (within 2–3%)
  • Consistent with manufacturer specifications
  • Corrected for temperature to ensure accuracy

Any imbalance or abnormal value is a clear indication of internal issues requiring immediate attention.

Tools used for Motor Winding Resistance test

  • Precision low-ohm meters (e.g. , digital micro-ohmmeters)
  • High-potential (Hi-Pot) testing equipment
  • Certified calibration equipment
  • Insulation testers (meggers)
  • Temperature compensation instruments

Why Choose Us?

Want to reduce downtime with a certified resistance test?

Contact us

Frequently Asked Questions

How much resistance should a motor winding have?

+

The resistance of a motor winding should always be a small, finite value , never zero. For small motors, it is usually in the range of a few ohms. For medium motors, it falls in the fraction of an ohm range. For large motors, it is typically in the milliohm range. Regardless of size, the winding resistances must be balanced across all phases within about 2 to 3%.

What is the winding resistance test?

+

A winding resistance test measures the electrical resistance of a motor’s windings (coils) to check their condition

What is the winding resistance of a 7.5 kW motor?

+

In general, 7.5 kW motors have low winding resistance, typically ranging from a few milliohms to a few ohms. For three-phase motors, all windings should be nearly equal, with deviations kept within 2–3%, ensuring balanced performance and safe operation.

How many ohms is a 3-phase motor?

+

A three-phase motor winding normally has 5 to 50 ohms, depending on the power and design of the motor.
